Specification:

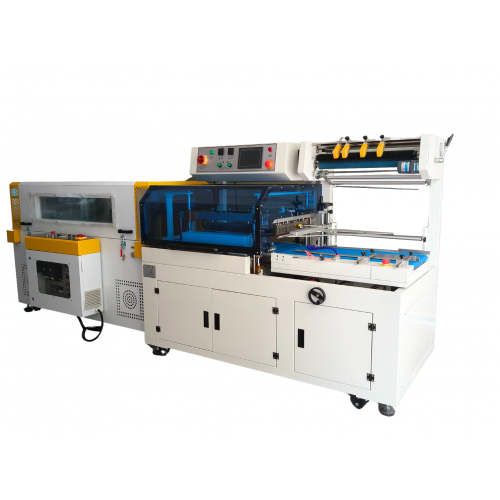

Vertical L bar sealing machine (servo type) WWP-5545S

1.         The heating source adopts stainless steel heating tube, which has a long service life.

2.         It adopts anti-stick and high-temperature sealing knife, which is molded in one piece to make the sealing stronger and more beautiful. The outside of the knife is coated with Teflon non-stick film.

3.         The sealing knife temperature control adopts Xiamen Yudian digital display temperature controller and imported heat-sensitive sensor control. The temperature is adjustable from 0-300`C.

4.         Sealing and cutting size, electric height adjustment

5.         The sealing knife protection adopts German "SICK" to effectively prevent incorrect sealing of packaging objects.

6.         The drive system adopts Uda servo sealing and cutting to ensure firm and stable sealing.

7.         Planetary integrated servo ensures high-speed and stable conveying

8.         Zhongda motor ensures accurate and uniform waste recycling, and stable film feeding.

9.         The detection adopts American "Banner" photoelectric sensor to accurately and sensitively detect product transportation and stop.

10.     The sensor switch adopts German "SICK" to accurately control the recycling time of waste materials.

11.     The sensor switch adopts "FOOSN" to accurately control the length of film feeding

12.     Hole punch: Multiple hole punches to quickly expel the air inside the bag when it shrinks

13.     Mechanical components are made of carbon steel sprayed with plastic, and key parts are made of stainless steel plates and aluminum profiles to ensure a solid structure.

14.     Surface treatment requirements, anti-corrosion structural materials should be sprayed or nickel plated on the surface.

Shrinking tunnel WWP-5030LLW

Hi-speed hot air circulating shrink tunnel adopts roller type conveyor, the rollers are covered by silicone gel pipe they roll automatically, and also the conveyor can use Teflon mesh belt or S.S. mesh belt instead of rollers. When shrink PE film, need not the rollers roll, easy to convert it by the handle at the end of the tunnel.

The temperature inside the tunnel is even, suitable for shrink PE.PVO.POF films;

The inner container forms hot air circulation inside tunnel, the volume of hot air can be controlled by the air doors according to the packing requirements for different products.

Technical Parameters:

Standard components:

WWP-5545S:

Belt: PU

PLC: INOVANCE

Intermediate relay: IDEC (Japan)

Touch screen: MCGS 7-inch 65000 color screen

Thermostat: Yudian (Xiamen)

Emergency switch: IDEC (Japan)

Motor: Zhongda

Sensor switch: SICK (German) & FOOSN

Photoelectric sensor: Banner (American)

WWP-5030LLW:

Air machine: China Tianyang

Conveyor motor: China Taibang

Frequency changer: China Taiwan Delta

Temperature controller: Japan Omron

Switch: China Taiwan Tiande

Circuit breaker: France Schneider

Circuit breaker: China CHINT

Ac contactor: France Schneider

Intermediate relay: Japan Omron

Solid-state relay: China VHHD
